Carat Pipe

Product Description

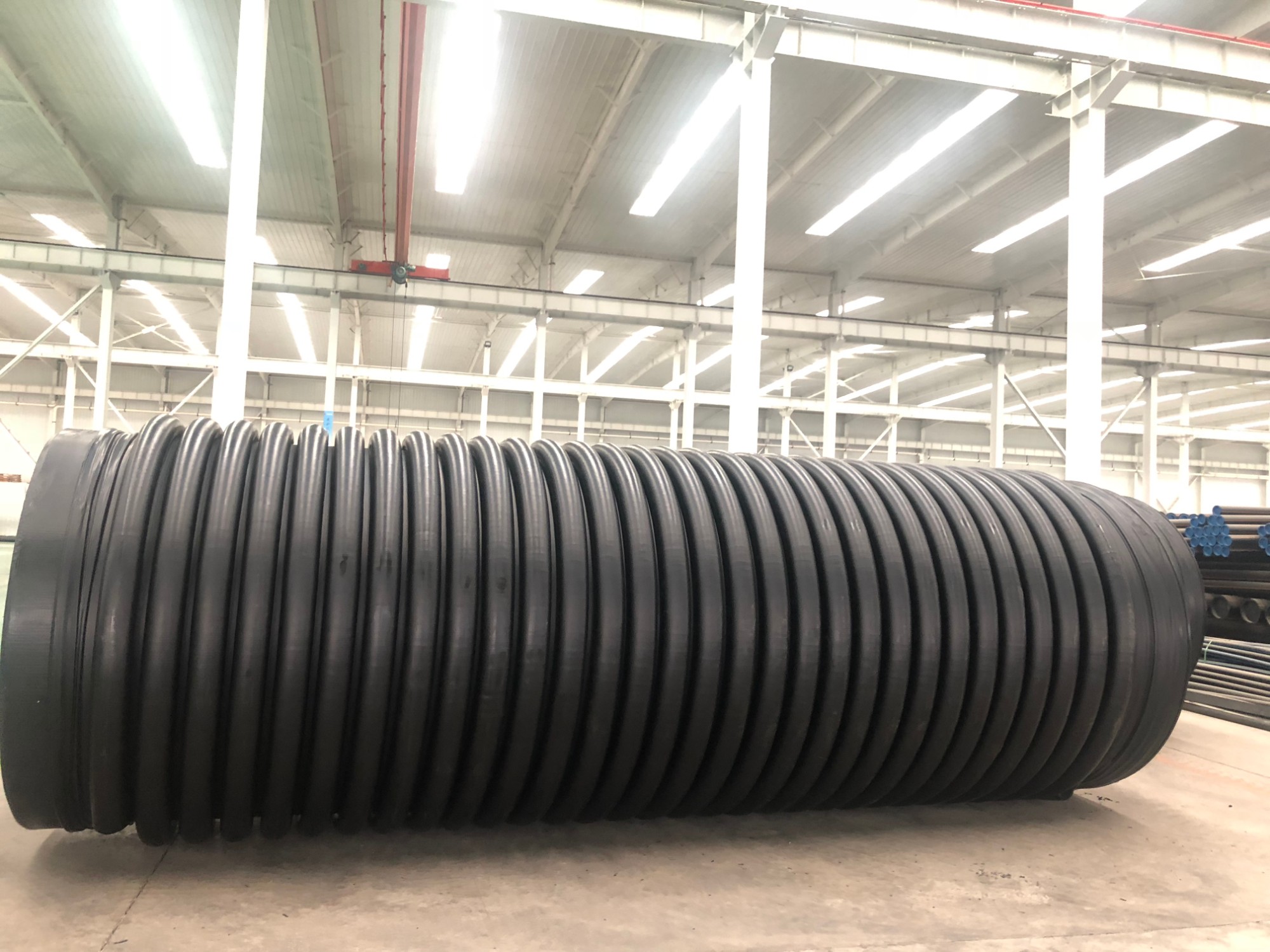

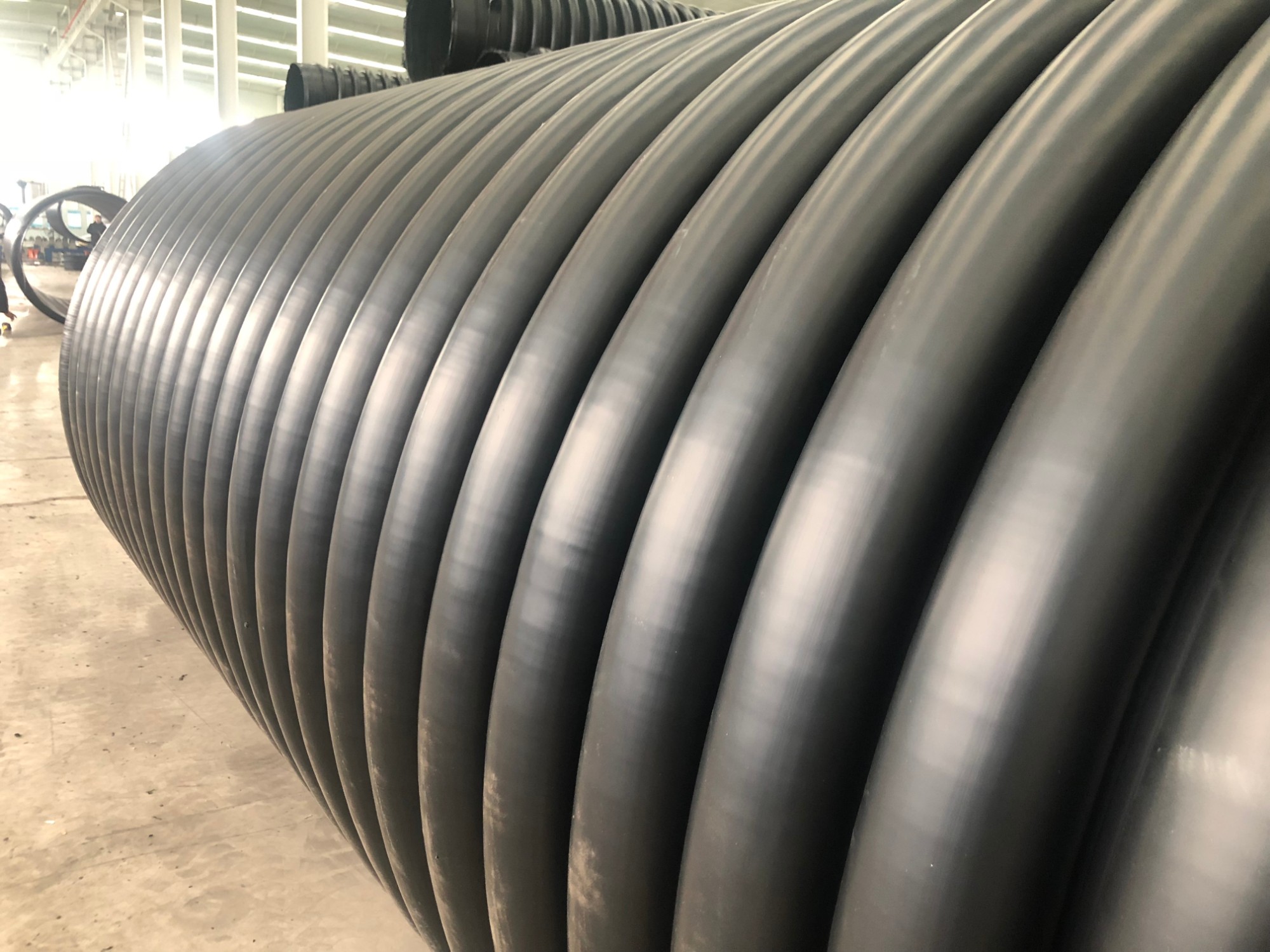

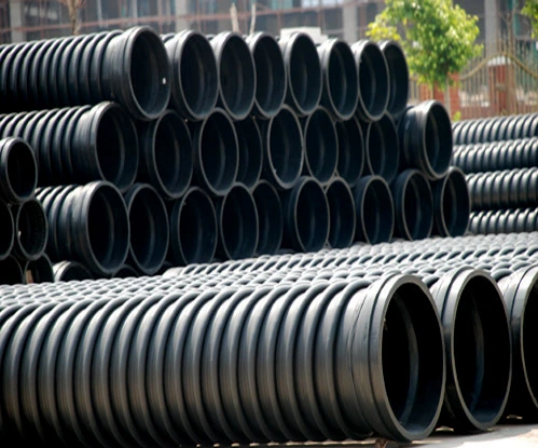

Its a new type of special-shaped wall pipe, with ring stiffness SN2-16, diameter DN300-DN4000 series, the product to high-density polyethylene resin (HDPE) as raw materials to PP or PE corrugated pipe to do Auxiliary support tube, the use of hot winding molding process to produce high-density polyethylene large diameter winding enhanced pipe.

Specification

Features

In addition to the conventional plastic pipe environmental protection, light weight, easy construction and other characteristics, but also has the following outstanding performance: the use of high-performance, high-performance pipeline system,

1. Hot winding, no internal stress: winding when used on the drum mold heating process to ensure that the structure of the quality of wall welded pipe joints;

2. Ring stiffness, ring flexibility is good: SN16 series with the diameter of the pipe, according to customer requirements can produce higher ring stiffness series of products;

3. Corrosion resistance, wear resistance, creep resistance: acid and alkali corrosion, wear resistance far more than metal, cement and other pipelines, and long-term creep resistance, the tube with more than 50 years;

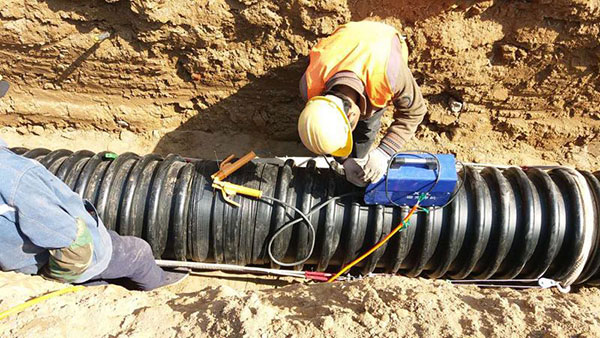

4. Fused connection, zero leakage: fused connection, homogeneous connection, the installation of reliable, fast and convenient;

5. Good flexibility, earthquake resistance, disaster reduction ability: As the pipeline using hot winding process and hot melt socket connection to its overall flexibility is very good, greatly improving the public facilities against geological uneven settlement, disaster reduction and other capabilities, such as pipeline Resistant to 8 earthquake.

Application

1. Municipal underground wastewater and sewage pipelines.

2. Drainage and sewage pipelines in factories and sewage treatment plant.

3. Ventilation system pipelines.

4. Electrical and optical cable protection use pipeline system.

5. Seawater and rainwater transmission pipelines.

6. Water gathering and water percolation system.

7. Agricultural irrigation water pipelines.

8. Production of chemical processing vessel.
