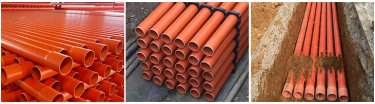

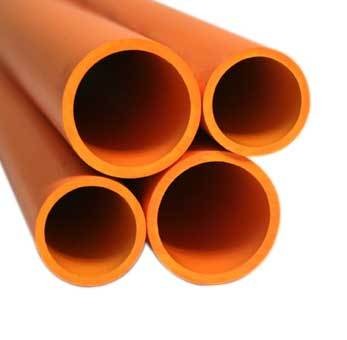

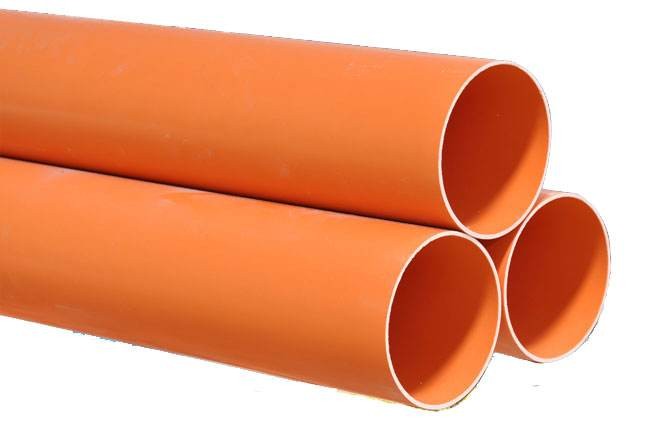

CPVC Electrical Pipe
Diameter:
CPVC Pipe Size: 2 "~ 10 ";
CPVC Pipe Fitting Size: 2 "~ 10 "
Features: Fire Sprinkler CPVC Pipe has a flash ignition temperature of 900°F which is the lowest temperature at which sufficient combustible gas is evolved that can be ignited by a small external flame. Many other ordinary combustibles, such as wood, ignite at 500°F or less. Accordingly, systems cannot be the ignition source of a fire.
Product Description
CPVC Tubing (high and low voltage cable protection sleeve) has the characteristics of corrosion resistance, acid resistance, alkali resistance, salt and other chemical solvent corrosion, no cracking in case of grease, high strength, flame retardant, smoke suppression, heat resistance, long service life, etc.
The CPVC tibing completely overcomes the disadvantage of poor weather resistance of ordinary pvc tube. It can replace the steel pipe in strength and overcomes the disadvantages of easy corrosion of the steel pipe and the damage of single core cable with high temperature caused by the closed magnetic circuit field.
Product Specification
CPVC PIPES Parameter | ||||
Outer Diameter | Thickness | |||
DN(mm) | mm | mm | mm | mm |
50 | 2.5 | 3 | 4 | - |
63 | 2.5 | 3 | 4 | - |
75 | 3 | 4 | 5 | - |
90 | 3 | 4 | 5 | 7 |
110 | 3 | 4 | 5 | 7 |
150 | 3 | 4 | 5 | 7 |
167 | 3 | 4 | 5 | 7 |
200 | 4 | 5 | 7 | 8 |
250 | 5 | 7 | 8 | 9 |
CPVC Pipe Production Details:
Project | Technical Indicators | ||
Density (Kg/m³) | ≤1600 | ||
Vicat Softening Temperature | ≥93 | ||
KN Ring Section Hot Pressing Force | En mm Nominal Wall Thickness | 5.0~8.0 | ≥0.45 |
≥8.0 | ≥1.26 | ||
Volume Resistivity (m) | ≥1.0×10 | ||
Drop Hammer Impact 20+-20℃ | 10 impacts 9 times without cracking | ||
Longitudinal Shrinkage | ≤5.0 | ||
CPVC Tubing Feature
1.Good flexibility
2.Long service life
3.Excellent heat resistance
4.Environmentally friendly light weight
5.Convenient installation transportation
6.Good insulation and high volume resistivity.
7.High temperature resistance and low project cost
8.It can't burn itself, and will extinguish immediately after leaving the fire.
